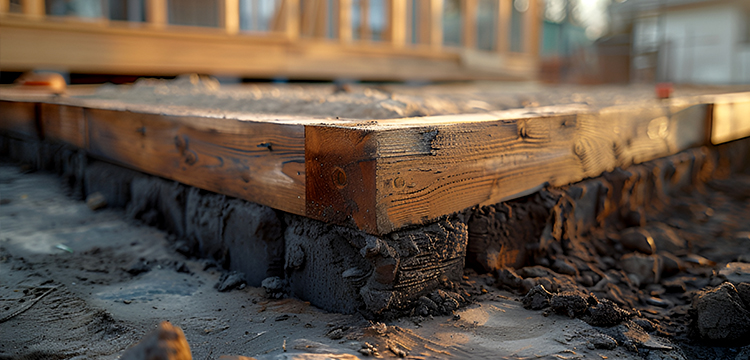

Shallow Foundations: The Bedrock of Construction

The foundation of a building is the base that supports the entire structure. Choosing the right foundation type is crucial for long-term stability and safety. Amongst these, shallow foundations are a common and economical alternative for many construction projects.

What is a Shallow Foundation?

A shallow foundation, also known as a spread footing, is a type of foundation that transfers the weight of a building or structure to the surrounding soil close to the surface. Unlike deep foundations that go deeper into the earth, shallow foundations have a depth that is generally less than their width. They are the most widely used foundation systems due to their ease and cost-effectiveness for suitable projects. These types of foundations are mostly used for simple constructions like houses, garages, sheds, etc.

Why Choose a Shallow Foundation?

There are several advantages to opting for a shallow foundation:

• Cost-effective: They require less excavation and material compared to deep foundations, leading to significant cost savings.
• Simpler construction: The construction process is relatively straightforward, making them quicker to build.
• Suitable for various structures: Shallow foundations are ideal for low-rise buildings, houses, garages, and even some bridges on solid ground.

However, it’s important to remember that shallow foundations also have limitations:

• Soil restrictions: The soil needs to be strong enough to bear the weight of the structure without excessive settlement or movement. Weak or compressible soils may not be suitable.
• Limited depth: Due to their shallow nature, they may not be the best choice for very heavy structures that require deeper load distribution.

Types of Shallow Foundations:

The specific type of shallow foundation chosen depends on the building design, soil conditions, and load requirements. Here’s a breakdown of some common types:

1. Isolated Footing (Individual Footing): These are square or rectangular concrete pads that support a single column or wall. They are the most basic type of shallow foundation and are used for individual columns in framed structures.

2. Strip Footing (Continuous Footing or Wall Footing): These are long, continuous concrete strips that run along the length of a wall. They distribute the weight of the wall evenly across the soil and are commonly used for load-bearing walls. This type of footing provides support to the weight of the structure.

3. Combined Footing: When columns or walls are positioned with a large distance between them, separate footings might overlap. In such cases, a combined footing is used. It’s essentially a single larger footing that supports both structural elements.
4. Cantilever Footing (Strap Footing): These L-shaped footings are used when a wall is located next to a property line or an excavation. The cantilevered portion helps distribute the load further into the soil and away from the property line.

5. Mat Foundation (Raft Foundation): For structures built on weak or uneven soil, a mat foundation is employed. It’s a thick concrete slab that covers the entire building footprint, distributing the weight uniformly across a large area.

Choosing the Correct Shallow Foundation:

Selecting the most appropriate shallow foundation for your project requires careful consideration of several factors:

• Structural loads: The weight of the building and any additional loads it will bear.
• Soil conditions: The type, strength, and bearing capacity of the soil at the construction site.
• Local building codes: Specific requirements mandated by your region.

Shallow foundations are an integral part of construction, and provide a stable and economical base for various structures. By understanding their types, advantages, and limitations, you can make informed choices when starting your building project. It is important to note that the right foundation ensures a safe and enduring structure for years to come.

In construction, a foundation is the key that forms the bedrock to support and anchor a building or other structures to the ground.

It serves to:

• Distribute the load of the building safely into the soil or rock beneath, ensuring stability and preventing settlement or movement.
• Keep the moisture and water out of the structure.

Foundations are typically constructed below ground level and come in various types, each suited to different soil conditions, building designs, and structural requirements.

Following are a few types of foundations in construction:

These are divided into 2 categories of construction foundation types:

Shallow Foundations

These are a type of foundation that transfer the load of a structure to the soil near the surface. These house foundation types are further classified as:

1. Strip Foundations: Strip foundations, also known as continuous foundations, are one of the most common types used in construction. They consist of a continuous strip of concrete, typically reinforced, that supports the load of a wall or a line of closely spaced columns. Strip foundations are suitable for light to medium loads and are often used in buildings with uniform soil conditions, preferably with large bearing capacity.

2. Raft Foundations: Raft foundations, also called mat foundations, are designed to evenly spread the load of a structure over a large area, reducing the pressure on the soil. They are commonly used in areas with poor soil conditions. Raft foundations are characterized by a thick concrete slab that extends over the entire footprint of the building, like a raft, providing stability and support.

3. Pad Foundations: Pad foundations, also known as spread footings, are used to support individual columns or posts. They are square or rectangular slabs of concrete that spread the load from the column over a larger area of soil. Pad foundations are commonly used in structures with isolated columns or in situations where strip or raft foundations are not feasible.

Deep Foundations

These foundations are structural elements that penetrate deeper into the ground to reach more stable soil or rock layers. They are used when shallow foundations are not feasible due to weak or unstable soil conditions, or when the building loads are exceptionally heavy. Their types include:

4. Pile Foundations: Pile foundations are used when the soil at the construction site has low bearing capacity and is not strong enough to support the structure or when the load needs to be transferred to deeper, more stable layers of soil or rock. Pile foundations consist of long, slender columns/ cylinders created from concrete, called piles, that are driven deep into the ground. These piles can also be made of steel, or wood, depending on the specific requirements of the project.

5. Caissons Foundations: Caissons, also known as drilled piers or drilled shafts, are deep foundation elements used to support structures like bridges, buildings, and other heavy structures. They are similar to pile foundations but offer a high level of load capacity. They are large, cylindrical, or box-like structures that are drilled or excavated into the ground and then filled with concrete or sometimes reinforced with steel.

Each type of foundation has its advantages and limitations, and the choice of foundation depends on various factors such as soil conditions, building design, and budget constraints. By understanding the different types of foundations available, builders and engineers can ensure that they select the most appropriate foundation for their construction project, laying a solid groundwork for a successful and enduring structure.

The ongoing infrastructural development in India is driving a notable surge in the demand for Thermo-Mechanically Treated (TMT) Bars. This escalating demand will necessitate a corresponding increase in the production of this quintessential construction element. While it is imperative for steel manufacturers to prioritize both supply and storage in the manufacturing units, equally important is the meticulous handling and storage of this material at the construction site. Given the hot and moist climate in India, these bars are susceptible to corrosion and rust, if not stored properly. Any oversight in storing the bars properly at the construction site can deteriorate the quality of these TMT bars further compromising the structural integrity of the buildings.

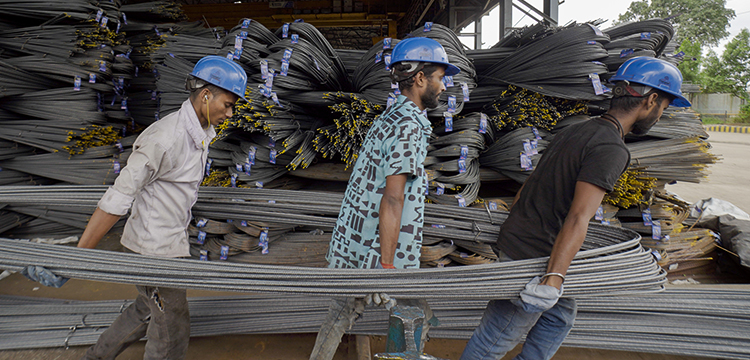

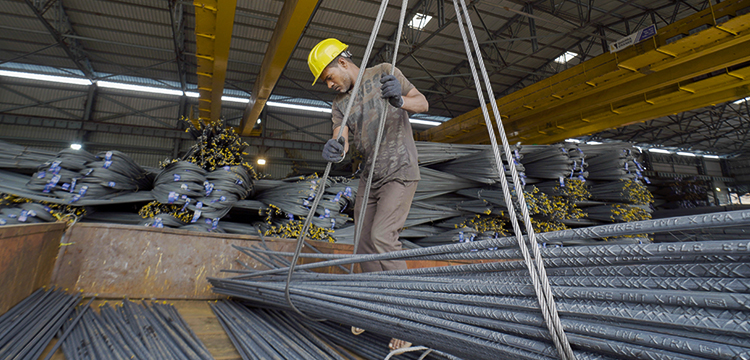

Here are some invaluable tips for construction teams to ensure the proper handling and storage of TMT steel bars:

1. Choose the Right Storage Area: The first step in maintaining the quality of TMT steel bars is to select an appropriate storage area. Preferably, this area should be clean, dry, and well-ventilated. Avoid locations prone to moisture or water accumulation, as prolonged exposure can lead to corrosion and compromise the integrity of the bars.

2. Keep Bars Elevated: When storing TMT steel bars, ensure they are elevated above the ground level. This precaution prevents direct contact with moisture and minimizes the risk of rusting. Wooden pallets or platforms can serve as effective elevation mechanisms, providing adequate airflow around the bars.

3. Organize Based on Sizes and Grades: Maintain an organized storage system by segregating TMT steel bars according to their sizes and grades. This arrangement facilitates easy accessibility and prevents confusion during construction activities. Proper labelling of each batch further streamlines the identification process.

4. Proper Bundling and Spacing: To ensure proper load distribution, it is important to maintain a space of 1-2 meters between two bundles of TMT Bars. Excessive transverse and longitudinal load may damage the rib structure and significantly reduce the concrete bonding strength.

5. Implement First-In, First-Out (FIFO) Principle: Adhere to the FIFO principle when accessing TMT steel bars for construction purposes. By utilizing the oldest stock first, you prevent the accumulation of inventory and ensure that all bars are used efficiently, minimizing the risk of deterioration over time.

6. Protect Against Environmental Factors: Shielding TMT steel bars from adverse weather conditions such as rain, snow, or excessive sunlight is important to safeguard their quality. Consider covering the storage area with waterproof tarps or installing a temporary shelter to provide additional protection. Extreme temperatures can also impact the quality of steel, so maintaining a stable environment is crucial.

7. Handle with Care: When it comes to the handling of the best TMT sariya, it is crucial to exercise caution to prevent any damage or deformities. Avoid dropping or dragging the bars, as this can lead to surface abrasions or structural weaknesses. Utilize appropriate lifting equipment such as cranes or forklifts for safe transportation within the construction site.

8. Regular Inspections: Schedule periodic inspections of stored TMT steel bars to assess their condition and identify any signs of corrosion or damage. Promptly address any issues detected during these inspections to prevent further deterioration and ensure the structural integrity of the bars.

9. Minimize Exposure to Chemicals: Keep TMT steel bars away from chemicals or substances that may accelerate corrosion or adversely affect their properties. Store them separately from materials such as acids, solvents, or fertilizers to mitigate the risk of chemical reactions.

10. Train Personnel: Provide comprehensive training to construction site personnel on the proper handling and storage protocols for TMT steel bars. Emphasize the importance of adherence to safety guidelines and best practices to minimize the likelihood of accidents or damage during operations.

11. Document Storage Conditions: Maintain detailed records of storage conditions, including temperature, humidity levels, and any incidents or observations relevant to the quality of TMT steel bars. This documentation serves as a valuable reference for future assessments and quality assurance processes.

In conclusion, the efficient handling and storage of TMT steel bars are integral to the success of construction projects. By adhering to the outlined tips, construction teams can safeguard the quality and integrity of TMT steel bars, thereby optimizing their performance in various structural applications. Prioritizing proper storage and handling practices not only enhances the longevity of steel materials but also contributes significantly to the safety and reliability of the built environment. With meticulous attention to detail and proactive measures, construction stakeholders can mitigate risks associated with corrosion, damage, and structural compromise, ultimately fostering sustainable and resilient infrastructure development in India.

Construction in the bygone days often relied on iron rods and concrete, lacking long-term protection. However, with the advent of TMT Bars (Thermo-Mechanically Treated Steel Bars), a transformation occurred. Through rigorous processes of casting, quenching, rolling, self-tempering, cooling, etc. TMT bars emerged as a firm backbone of modern infrastructure. Needless to say, these steel bars are a quintessential component in today’s construction, enabling not just long-term protection of infrastructure, but also forging the way for sustainability and environmental protection in construction projects.

Before buying TMT bars, it’s essential to consider several factors to ensure you’re making the right choice for your construction project. Here are eight crucial considerations:

1. Brand Legacy: Opting for a time-tested brand name ensures product reliability and quality. TMT bars manufactured by established brands undergo rigorous quality measures and, as a result, are of superior strength and quality. A trusted name in the industry is Shree TMT, the flagship product of Devashree Ispat Pvt. Ltd. Founded by the visionary Goenka family, whose involvement in steel dates back to 1966, Shree TMT is a testament to a rich legacy of excellence and innovation in the steel manufacturing sector. Their brand legacy is built on a foundation of integrity, innovation, and customer satisfaction, backed by over 50 years of a reputation for excellence.

2. Grade Matters: The grade of TMT steel bars indicates their yield strength and durability. Common grades include Fe415, Fe500, and Fe550, indicating the minimum yield strength in megapascals (MPa). Higher-grade bars are suitable for heavy-duty structures. Fe 500 or Fe 550 grade TMT bars are commonly used in construction projects where high strength and durability are essential, such as high-rise buildings, bridges, and industrial structures. The purchaser should assess the appropriate grade depending on the specific requirements and load-bearing capacity of the structure, to ensure structural integrity and safety throughout its lifespan.

3. Design and Features: The quality of the TMT bars plays a crucial role in the foundational strength of a building. TMT rods with features such as high load-bearing strength or better ductility will effectively increase the longevity of your construction. Shree TMT’s steel bars possess a unique 3X ribs design which enhances their bond strength with concrete by 9-14%, providing superior structural stability and load-bearing capacity. Ribs on the surface of the bars increase friction between the steel and concrete, preventing slippage and ensuring effective load transfer. This feature improves the overall performance of reinforced concrete structures, particularly in seismic zones or areas prone to heavy loads and dynamic forces.

4. BIS Certification: While selecting TMT bars, it is important to ensure that the bars comply with relevant national or international quality standards like BIS (Bureau of Indian Standards) in India. This underscores the quality and performance standards specified by the national regulatory authority. Choosing BIS-certified TMT steel bars assures quality, reliability, and adherence to industry best practices, meeting the requirements of construction projects and regulatory authorities.

5. Manufacturing Process: TMT bars undergo a specialized manufacturing process involving controlled heating and rapid cooling to enhance their strength and ductility. Understanding the manufacturing process and ensuring it meets quality standards is crucial for getting reliable and high-performance bars. It is advisable to look for reputable manufacturers with a proven track record of producing quality TMT bars. Manufacturers like Shree TMT have automated rolling mills backed by German quenching technology, resulting in superior-quality TMT bars.

6. Bendability and Weldability: TMT bars should possess adequate bendability and weldability to facilitate construction processes such as bending, shaping, and welding without compromising their structural integrity. Verify and select TMT bars with optimal bendability and elongation capability to ensure flexibility during construction while maintaining structural strength and integrity, reducing material wastage and construction time. Shree TMT manufactures premium TMT steel bars that can be welded into any desired shape. This is partly due to smoother surface conditions and lower thermal conductivity.

7. Certifications and Testing: Reliable TMT bars come with certifications and test reports from accredited laboratories, verifying their quality, grade, and compliance with relevant standards. Look for certifications such as the ISI (Indian Standards Institute) mark in India or equivalent certifications in other regions. Additionally, consider conducting on-site or independent testing to validate the bars’ properties and ensure they meet project specifications.

8. Delivery Time: It is crucial to receive your stock on time, which necessitates choosing a manufacturer that has a strong supply chain and robust inventory management. Hyderabad-based Shree TMT  prioritizes efficient transportation and inventory management to maintain a continuous supply of fresh TMT bars. The inventory includes a wide range of sizes including the rare 36mm diameter steel bars, ensuring a streamlined order fulfillment process.

By considering these factors, you can make informed decisions when purchasing TMT steel bars, ensuring they meet the necessary quality standards and are suitable for your construction project’s requirements.

One of the best steel manufacturers in South India, Shree TMT, specializes in manufacturing TMT bars for premium-grade infrastructure and real estate and has a legacy that dates back to 1966. Their TMT bars, featuring a unique 3X ribs design, robust manufacturing processes, and adherence to stringent quality standards like BIS certification, exemplify excellence in structural reinforcement. With such brands leading the way, you can build with confidence, knowing that your structures are fortified for the challenges of the future.

Thermo-mechanically treated (TMT) bars are a type of steel reinforcement extensively used in construction due to their high tensile strength and ductility. However, not all TMT bars are created equal. Earthquake-resistant TMT bars undergo specialized manufacturing processes designed to enhance their strength, ductility, and resilience forging them to withstand seismic forces.

The primary causes of building collapse during an earthquake are lateral and torsional forces. Both these forces can cause damage to the structural elements of the building, such as columns, beams, and slabs. To ensure the creation of top-quality earthquake-resistant TMT bars, the quality control starts right at the raw material stage, through careful selection of high-quality raw materials, primarily consisting of low-carbon steel billets.

Subsequently, a series of precision manufacturing steps including hot rolling, quenching, tempering, and ribbing, among others, are executed with utmost attention to detail. Advanced technologies are incorporated throughout these processes to craft earthquake-resistant TMT bars, recognized as indispensable components of construction. This is followed by rigorous quality control measures which include continuous monitoring of dimensions, chemical composition, mechanical properties, and surface characteristics to guarantee the reliability and performance of the final product.

How Do TMT Bars Prevent Structural Collapse During Earthquakes?

Renowned for their seismic resilience, top-quality TMT bars for earthquake resistance, such as those crafted by Shree TMT, exhibit the following distinct properties that fortify structures against earthquakes.

1. Ductility: Earthquake-resistant TMT bars possess exceptional ductility, allowing them to deform significantly before failure, dissipating energy, and preventing sudden brittle fractures during an earthquake. This property enables them to absorb and dissipate the energy exerted during an earthquake, minimizing structural damage.

2. Enhanced Strength: TMT Bars produced through specialized manufacturing processes involving controlled heating and cooling exhibit superior tensile strength, ensuring the structural integrity of buildings even under extreme stress conditions.

3. Bonding with Concrete: The unique ribbed surface of earthquake-resistant TMT bars facilitates better bonding with concrete, ensuring effective load transfer and distribution throughout the reinforced elements of the structure. This enhanced bonding minimizes the risk of detachment or displacement of TMT bars from the concrete matrix during seismic events, enhancing the overall stability of reinforced structures.

4. Corrosion Resistance: Corrosion can weaken steel reinforcements over time, compromising the structural integrity of buildings. Earthquake-resistant TMT bars are coated with corrosion-resistant materials, prolonging their lifespan and ensuring long-term structural stability.

Installation and Usage Guidelines:

Proper installation and usage of earthquake-resistant TMT bars are crucial for maximizing their effectiveness. Builders and engineers must adhere to stringent construction standards and guidelines to ensure these bars are utilized to their full potential. This includes proper spacing, adequate concrete cover, and compliance with seismic design codes and regulations.

The Importance of Seismic Retrofitting:

For existing structures, seismic retrofitting using earthquake-resistant TMT bars is essential to enhance their resilience against earthquakes. Retrofitting involves reinforcing the existing framework with additional TMT bars and strengthening key structural elements to meet current seismic safety standards.

The role of earthquake-resistant TMT bars is vital in safeguarding our homes and buildings against the destructive forces of earthquakes. By incorporating these bars into construction projects and retrofitting existing structures, we can significantly mitigate the risks posed by seismic activity, ensuring the safety and stability of our communities for generations to come. Proper design, quality manufacturing, and adherence to construction standards and guidelines are essential to ensure the structural integrity and safety of buildings reinforced with TMT bars.
